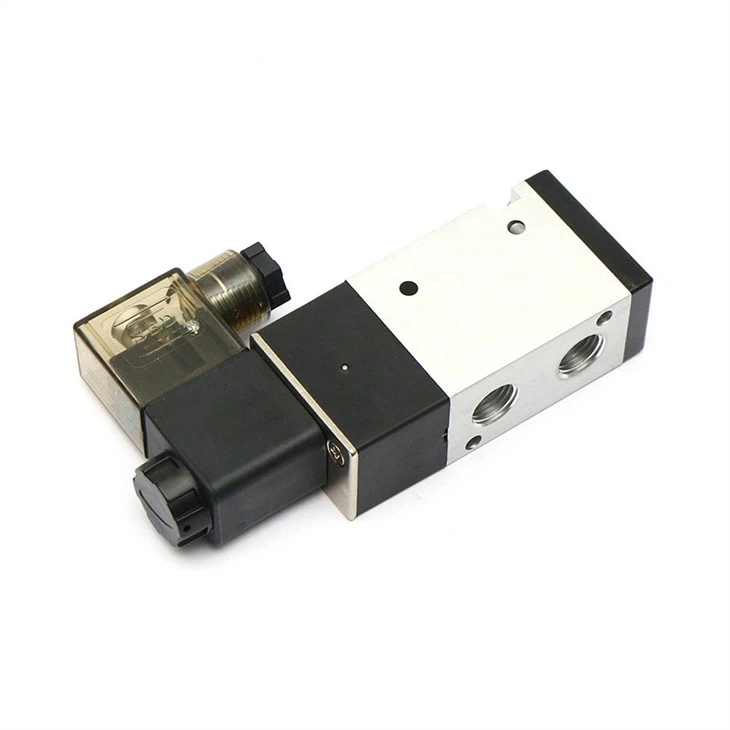

24v Pneumatic Solenoid Valve

Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading 24v pneumatic solenoid valve manufacturers and suppliers in China. If you're going to buy cheap 24v pneumatic solenoid valve, welcome to get quotation from our factory. All customized products are with high quality and competitive price.



Features





Product Features



1. High-strength aluminum alloy bottom cover

2. One-time machining of valve lever by CNC, high precision

3. Valve body was machining by CNC, clean and beautiful.

4. Spacial processing of inner hole, small friction resistance and low starting pressure

5. High-precision pilot accessories, excitation time of only 0.05 seconds

6. Imported seals, the life up to 30 millions of times

7. Aluminum alloy piston is not easy to damage

8. Embedded copper nut not easy to loose

9. Stable life cycle,guaranteed 100 million times.

10. Various voltage and working style are available;

11. Different surface treatment,thread types (G,NPT,PT,BSPP,BSPT)are available.

12. High temperature &high pressure 1.2Mpa can be customized .



Ordering code





Specification



Model	3V310-08	3V320-08	3V310-10	3V320-10
Working mode	Single acting	Double acting	Single acting	Double acting
Fluid	Air(to be filtered by 40μ;m filter element)
Acting	Internal pilot or external pilot
Port size	In=Out=1/4"		In=Out=3/8"
Orifice size	25.0mm²(Cv=1.39)		30.0mm²(Cv=1.67)
Valve type	3 port 2 position
Lubrication	Not required
Operating pressure	0.15～0.8MPa(21～114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-5～50℃
Material of body	Aluminum alloy
Power Consumption	AC5.5VA DC: 4.8W
Protection Class	IP65



Product name: 24v pneumatic solenoid valve

Wiring Form: Lead wire type or terminal type(option)

Voltage: DC12V DC24V AC110V AC220V AC380V(Option)

Allowable Voltage:±10% of rated voltage

Max. Frequency: 5 cycle/sec.

Shortest Activate Time: 0.05Sec.

Color of body can be white ,black or according to customer's request .

Pneumatic valve solenoid valve 3V310-10-NC Normally closed DC12V 24V AC110V ,AC220V, 3/8" , 3 port 2 position 3/2 way

Material: Aluminium Alloy (body), NBR ,HNBR(seal)

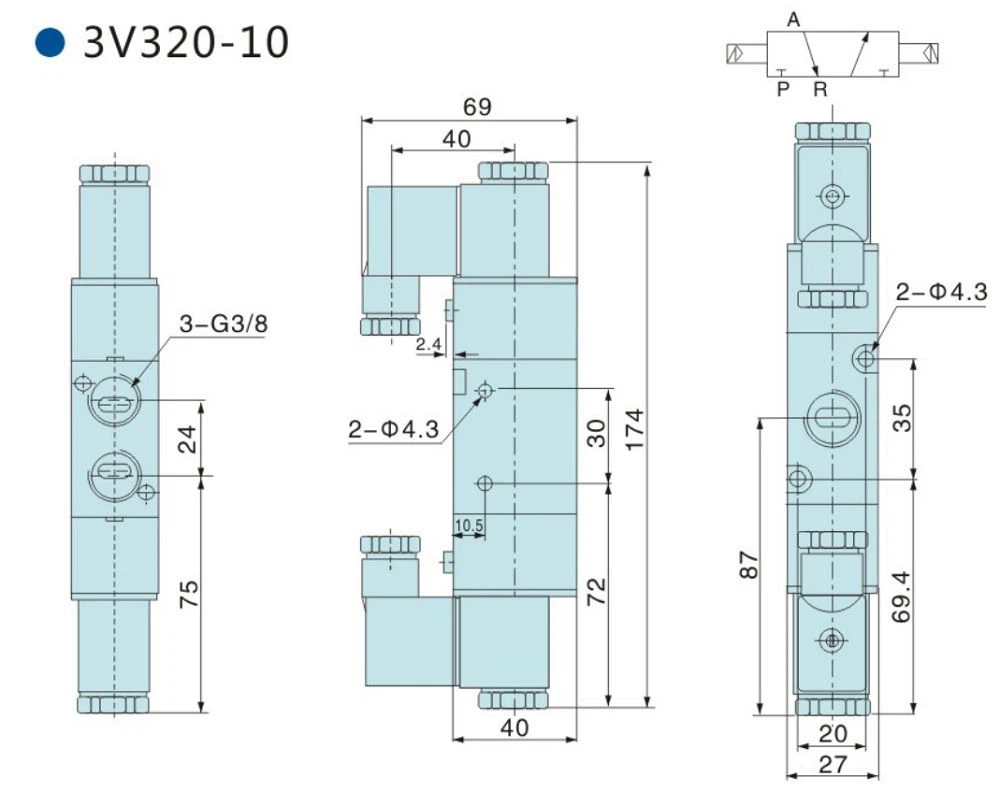

Overall dimension





Payment and shipment



Payment:Normally do payment through T/T 30% deposit and 70% balance before shipping.

Shipment: for small quantity, we will choose DHL, FedEx, UPS, TNT, or EMS with most competitive freight for you!

for bulk quantity, we can arrange by sea with FOB price. Competitive freight will be given for reference!

for urgent order, airline shipping is also available.

We are committed to providing customers with quality services and the most favorable prices. There is always one that suits you.

-Competitive freight from our shipping agents,

-Fast delivery!

-Safe packing!



FAQ



1.Is sample order acceptable?

Yes,it is ok.



2.How to place the order?

You can send us email



3.How to make the payment?

We accept Bank T/T, Western Union



4.Is there cheap shipping cost to import to our country?

For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.



5.Can we make customized product?

Yes, we are good at making customized products.



If you have quotation of 24v pneumatic solenoid valve, please touch us at any time.
