4V210-08 solenoid valve

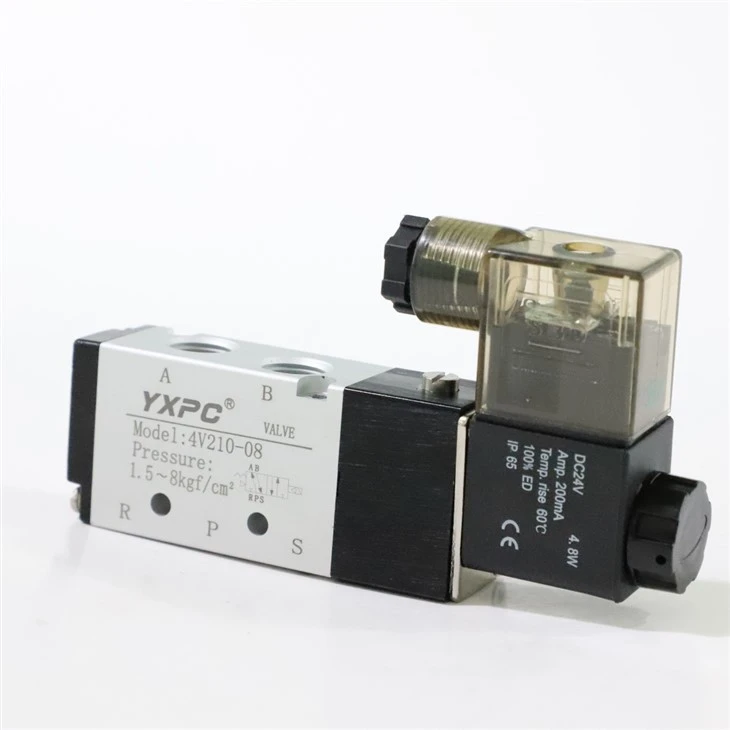

4V210-08 Pneumatic Solenoid Valve DC24V 5/2 Way Air Control Solenoid Valve 1/4" NPT Thread 1.5-8kgf/cm²
Features
Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading 4V210-08 solenoid valve manufacturers and suppliers in China. If you're going to buy cheap 4V210-08 solenoid valve, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
Products Description
We supply quality 4V210-08 pneumatic solenoid valve, a widely used 5 port 2 position air control valve for general pneumatic systems.
This model comes with 1/4 inch port, available in NPT, PT and G thread to fit different markets. Standard working pressure is 1.5 to 8 kgf/cm², stable enough for most automation machines. We use DC24V coil as standard, AC220V, AC110V and DC12V are also on request.
Built with solid body and good sealing parts, this solenoid valve runs smoothly for a long time. It supports continuous 24 hour operation, no easy coil burnout. IP65 protection makes it work well in normal workshop environment, dust and splash resistant.
Easy to install and wire. You can mount it on standard rail or flat surface. It works perfectly with pneumatic cylinders, packaging equipment, conveyor lines, textile machines and other air powered devices.
All items are tested before shipment. If you need samples or bulk order, feel free to contact us for best price.
| Parameter | Details |
|---|---|
| Model | 4V210-08 |
| Brand | YXPC |
| Valve Type | 5/2 Way (5 Port, 2 Position) Pneumatic Solenoid Valve |
| Voltage | DC24V (200mA, 4.8W) |
| Working Pressure | 1.5 ~ 8 kgf/cm² (0.15 ~ 0.8 MPa) |
| Port Size | 1/4" (PT/NPT/G thread optional) |
| Working Temperature | -5°C ~ +60°C |
| Duty Cycle | 100% ED (Continuous operation allowed) |
| Protection Class | IP65 |
| Certification | CE Certified |
Features
Standard model: 4V210-08, 5/2 way pneumatic solenoid valve
1/4 inch port, NPT / PT / G thread available
DC24V coil in stock, other voltage for custom order
Working pressure: 1.5 ~ 8 kgf/cm², steady operation
IP65 dust & water proof, fit for industrial use
Long lifespan, less maintenance needed
Simple installation and connection
Great for air cylinder, automation machinery, packaging lines
More Related Products
Parameter
|
Model NO. |
4V210-08B |
4V220-08B |
4V310-08B |
4V320-08B |
4V310-10B |
4V320-10B |
|
Port size |
G1/8" |
G1/4" |
G3/8" |
|||
|
Working mode |
Single acting |
|||||
|
Working Medium |
Air (40M filteration) |
|||||
|
Acting Mode |
Internal inductive type |
|||||
|
Sectional area |
16mm2(Cv=0.89) |
25mm2(Cv=1.4) |
30mm2(Cv=1.68) |
|||
|
working pressure |
1.5~8.0Kgf/cm2(21-114Psi) |
|||||
|
Max pressure |
12Kgf/cm2(170.6Psi) |
|||||
|
Working temperature |
-5~50C |
|||||
|
Working voltage |
DC12V,24V,AC36V,110VAC,220VAC,380VAC |
|||||
|
Voltage range |
-10%~+10% |
|||||
|
Power consumption |
AC380V:2.5VA AC220V:5.5VA AC110V:5.5VA DC24V:3W DC12V:4.8W |
|||||
|
Insulation |
F Class |
|||||
|
Protective class |
IP65 |
|||||
|
Max acting frequency |
five times per second |
|||||
|
Excitation time |
0.05S |
|||||
|
Connection form |
Leading wire or terminal connector type |
|||||
Overall dimension
FAQ
Q1: What thread types do you offer for this valve?
A: We have NPT, PT and G thread for choice. Please tell us your required type when placing order.
Q2: What voltages are available?
A: DC24V is our standard version. We also have DC12V, AC110V and AC220V in stock.
Q3: What is the working pressure range?
A: It works from 1.5 kgf/cm² to 8 kgf/cm², suitable for most regular pneumatic systems.
Q4: Is this valve waterproof and dustproof?
A: Yes, it is IP65 rated. It can resist dust and water splash, good for normal factory working conditions.
Q5: Can it run non-stop all day?
A: Sure. This valve supports 100% continuous duty cycle. The coil will not burn out under long time working.
Q6: How long can this valve last in daily use?
A: With good internal parts and sealing, it can reach over 10 million switching times, very durable for long term use.
Q7: How do I install this solenoid valve?
A: Mount it on flat surface or standard mounting rail. Connect air pipe to P port, and connect A/B ports to your cylinder. Remember to install mufflers on exhaust ports.
Q8: Does the installation direction matter?
A: We suggest installing it horizontally. Other angles are okay too, but horizontal mounting keeps better performance.
Q9: What should I prepare to use this valve?
A: You need matched air hoses, pipe fittings and mufflers. We also recommend using air filter regulator to keep air clean.
Q10: How to wire the DC24V coil?
A: Just connect positive wire to + terminal and negative wire to - terminal. Fasten the connector well to keep dust and water out.
Q11: The valve does not work after power on, what to check?
A: First check power supply and wiring. Then confirm air pressure is within normal range. If everything is fine, the spool may be stuck by dirt, clean it with compressed air.
Q12: There is air leakage from the valve, how to fix it?
A: If leaking at thread joint, wrap PTFE tape and tighten again. If leaking from exhaust port, the inner seal may be worn or spool stuck, clean or replace related parts.
Q13: Why does the valve reset slowly?
A: It may be caused by low air pressure, dirty spool or weak internal spring. Adjust pressure or clean the valve body.
Q14: Can I use it for liquid or corrosive gas?
A: No. This valve is only for clean dry compressed air. Do not use it for other medium.
Q15: Is it normal that the coil gets warm?
A: A little warm is normal during continuous work. If it gets too hot to touch, please check if your voltage is correct.
Q16: Can I order a sample first?
A: Yes, sample order is welcome. You can test the quality before bulk purchase.
Q17: What is your minimum order quantity?
A: We accept 1 piece for sample. For bulk orders, we can offer better price.
Q18: How long is your warranty?
A: We provide 12 months warranty. If quality problem occurs under normal use within warranty period, we will solve it for you.
Q19: How fast can you ship the goods?
A: Standard models are in stock, we ship out within 3 working days. For customized voltage or thread, it will take 7-15 days.
Q20: Do you accept OEM orders?
A: Yes, we can do custom logo and packaging as your request. Contact us for more details.
