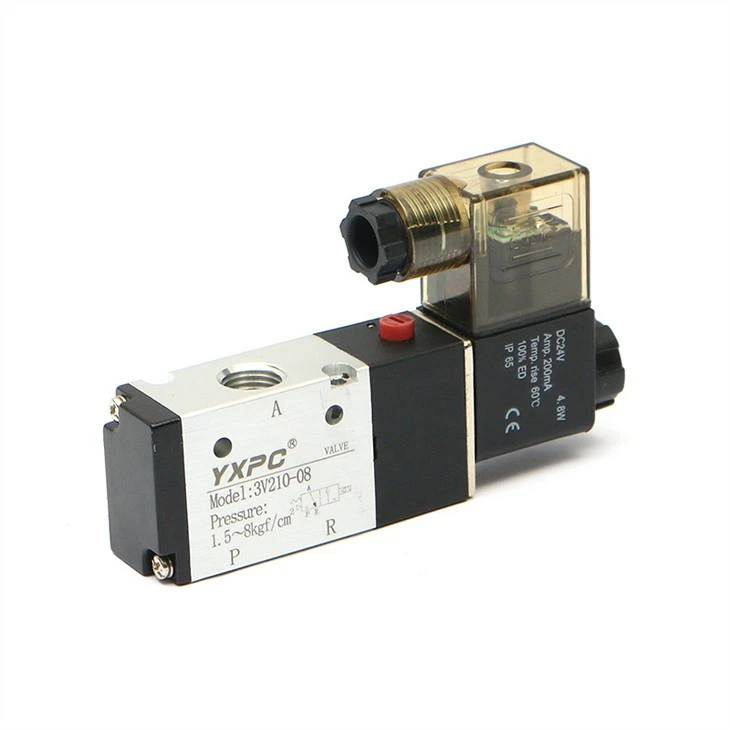

Pneumatic Electric Solenoid Valve

Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading pneumatic electric solenoid valve manufacturers and suppliers in China. If you're going to buy cheap pneumatic electric solenoid valve, welcome to get quotation from our factory. All customized products are with high quality and competitive price.



Features



200 Series 3V 4V solenoid valve & 3A, 4A air control valve, Internal Piloted directional control valve 5/2way, 5/3way, 3/2way. Normal is aluminium natural color for valve body, black color are optional.we will do full test before shipment. Long working life time, it can work 30 million times without any problems about pneumatic electric solenoid valve.

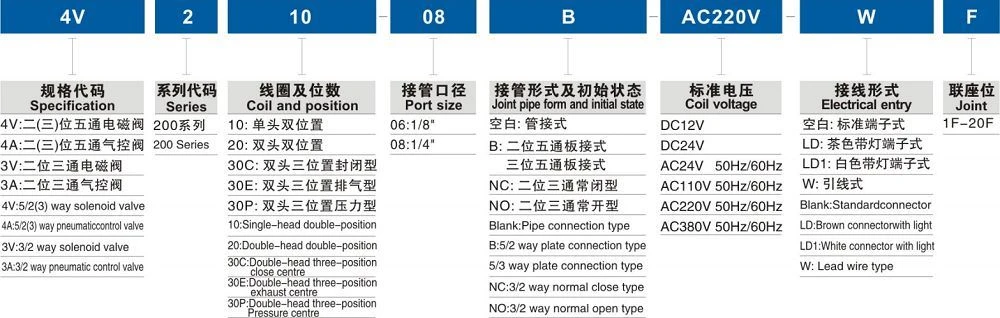

Ordering code





Specification



Product name: pneumatic electric solenoid valve

Port size: G1/8"; G 1/4", NPT thread can be customized also.

Position and way No. 5/2 Way; 3/2 way;

Standard Voltage: DC12V; DC24V; AC24V; AC110V;AC220V;AC380V

Connection and initial status: Threaded; sub-plated mounted

NC 3/2 way normally closed ; 3/2 way normally open

Coil and type: 10 Single coil; 20 Double coil;

Standard voltage DC12V,DC24V,AC24V,AC110V,AC220V,AC380V

Model	3V210-06	3V220-06	3V210-08	3V220-08
Working mode	Single action	Double action	Single action	Double action
Fluid	Air(to be filtered by 40μm filter element)
Acting	Internal pilot
Port size[Note1]	In=Out=exhaust=1/8",		In=Out=1/4",exhaust=1/8"
Orifice size	14.0mm²(Cv=0.78)		16.0mm²(Cv=0.89)
Valve type	3 port 2 position
Lubrication[Note2]	Not required
Operating pressure	0.15～0.8MPa(21～114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-5～50℃
Materal of body	Aluminum alloy
Insulation&protection class	IP65
Highest action frequency	5 cycles per time

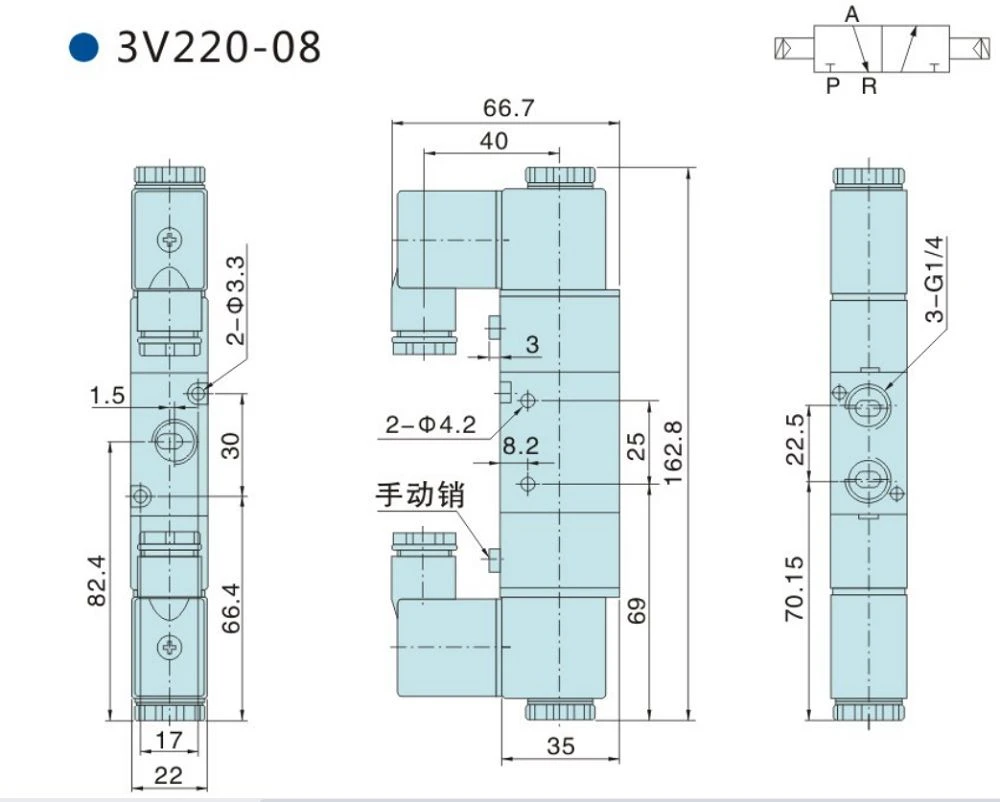

Overall dimension





Packaging & Delivery



1)YXPC Brand, Neutral or Customer's requires label

2)YXPC carton or same as the Customer's requires, export standard carton

3)All cartons should be packed into the pallets more carefully.

4)All of the productions are inspected carefully one by one by QC before delivery.

5)We usually use cartons to pack the goods together. When the product is a machine over 50kg, we use wooden or pallet packing.
