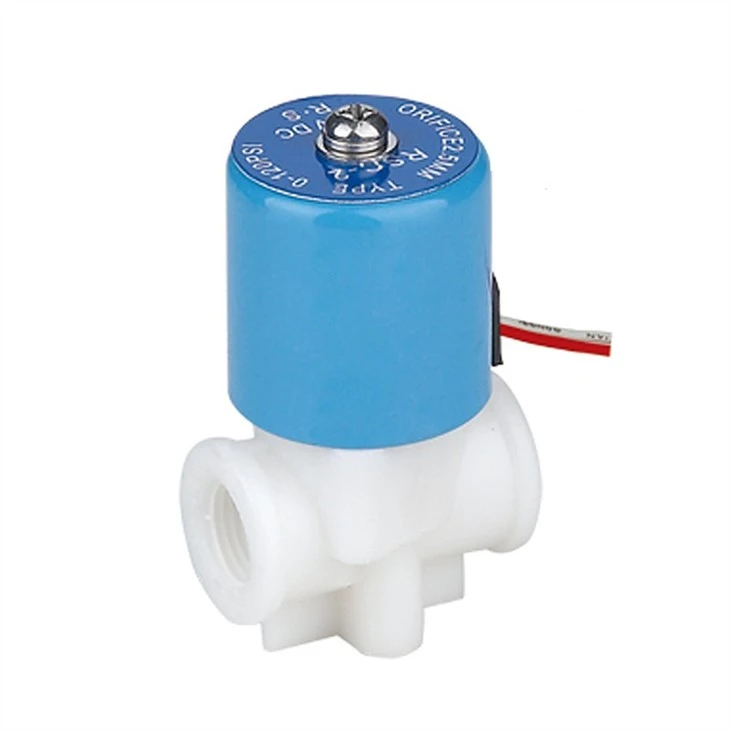

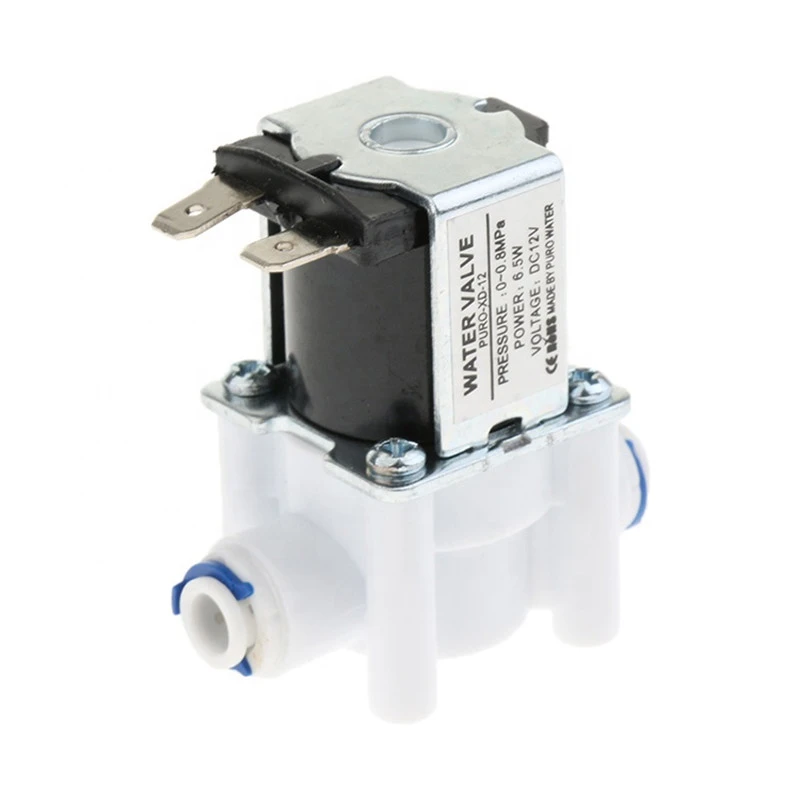

Ro Water Purifier Solenoid Valve

Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading ro water purifier solenoid valve manufacturers and suppliers in China. If you're going to buy cheap ro water purifier solenoid valve, welcome to get quotation from our factory. All customized products are with high quality and competitive price.





Body-Nylon,PP,POM

Seal-NBR, EPDM,VITON

Amature tube-stainless steel 304

Plunger-stainless steel430F

Stop-stainless steel 430F

Springs-SS304

Shading rings- stainless steel 304



Features



Working medium：water,hot water

Medium temperature：0～100℃

Working pressure：0～8bar(details see specification table)

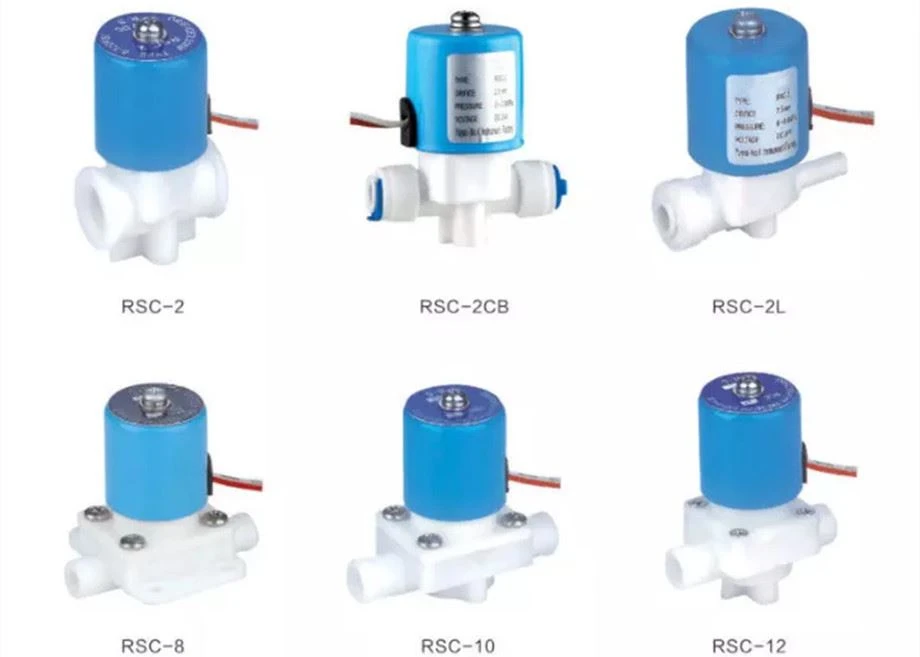

Working type：RSC-1 RSC-2 direct acting(NC)

RSC-8 RSC-10 RSC-12 diaphragm type(NC)

Sealing material：RSC-1 RSC-2 EPDM(-10～130℃) VMQ(-10～130℃)

RSC-8 RSC-10 RSC-12 VMQ

Valve body material：PP POM

Interface：NPT thread cannula

Working voltage：AC240V AC220/110V 50/60Hz 7VA DC24/12V 5.5W

IP54 B degree voltage could be custom made



Product Parameter



product name	Ro Water Purifier Solenoid Valve
working medium	water, hot water
model	RSC-2
port size	NPT1/4"
way and position	2 Position 2 way
material of body	POM, PP
Operating pressure	0~8 bar
orifice	2.5 mm
initial status	Normally closed
working mode	Direct drive
working voltage	DC12V DC24V, AC220V, AC110V, 50/60HZ
Temperature Range	0～100℃
seal material	EPDM
CV valve	0.2
Insulation & Protection grade	IP54 B grade
Power consumption	AC7VA DC 5.5W





Product Show









Our Advantages



1: Various style for each products and completely series pneumatic products for you to choose .

2: Large stock for fast shipping. 3: High quality with competitive price

4: Sample order & small quantity order is ok .

5: Customize according to your special demand.

6: Provide free products information.

7: Reliable quality assured and active after-sell service
