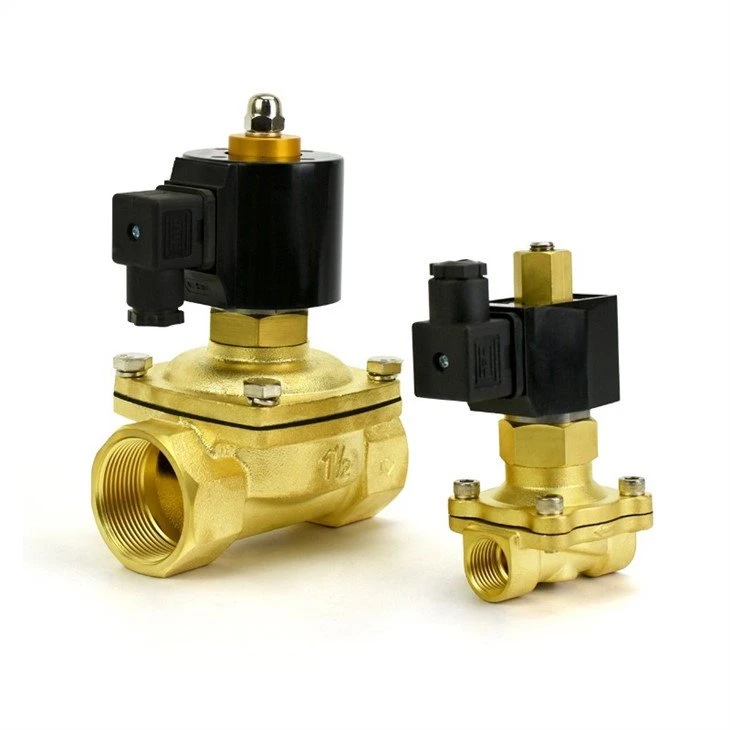

Electric Water Valve 220v

2W NO Series
Brass body
Stainless steel armature
12VDC,24VDC,110VAC,220VAC
Normally open type

Send Inquiry

Features

Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading electric water valve 220v manufacturers and suppliers in China. If you're going to buy cheap electric water valve 220v, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

Electric Water Valve 220V

Our electric water valve 220V are engineered to deliver reliable flow regulation across industrial, commercial, and residential systems. Built with advanced materials and intelligent designs, these valves ensure optimal performance in liquid or gas transmission while prioritizing energy efficiency and operational safety.

Key Features

01/

Multi-Directional Flow Control
Precisely adjust flow rates, pressure levels, and shut-off operations via manual, electric, or pneumatic actuation.

02/

Corrosion & High-Temperature Resistance
Constructed with stainless steel, brass, or polymer composites for longevity in harsh environments.

03/

Zero-Leakage Seal Technology
Advanced sealing mechanisms prevent leakage, minimizing resource waste and environmental risks.

04/

Energy-Saving Design
Reduces pump workload by up to 30% through optimized flow dynamics.

Advantages

01/

Low Maintenance & Easy Installation
Modular components and standardized interfaces ensure rapid deployment and hassle-free servicing.

02/

Customizable Solutions
Tailor valve specifications (size, pressure rating, connection type) to match unique system requirements.

Primary Applications

1)Industrial Automation
Cooling circuits, chemical processing, oil & gas pipelines.

2)Municipal Infrastructure
Water supply networks, wastewater treatment, fire protection systems.

3)Building Services
HVAC systems, plumbing, irrigation controls.

4)Agriculture & Aquaculture
Precision irrigation, hydroponic systems, fishery oxygenation.

Specifications

Provide explosion-proof solenoid coil and water-proof coils for electric water valve 220v.

Model	2W-025-06N	2W-025-08N	2W-160-15N	2W-200-20N	2W-250-25N	2W-350-35N	2W-400-40N	2W-500-50N
Fluid	Air, Water, Oil ,gas
Action	Direct drive
Type	Normally opened type
CV valve	0.23	0.23	4.8	7.6	12	24	29	48
Orifice size	2.5mm	4mm	16mm	20mm	25mm	35mm	40mm	50mm
Port size	1/8"	1/4"	1/2"	3/4"	1"	1 -1/4"	1-1/2"	2"
Viscosity limit		Under 20CS
Operating pressure		Water and oil:0~7.0kgf/cm² Air,gas: 0~10kgf/cm²
Working temperature		5~80℃
Voltage range		±10%
Main parts material	Body	Brass,stainless steel
Main parts material	Seal	NBR,EPDM,VITON
