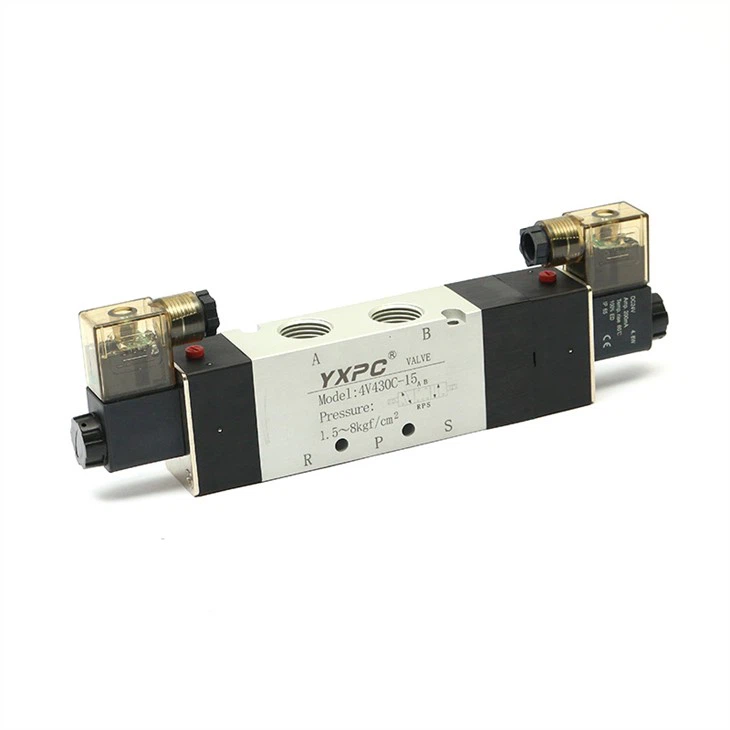

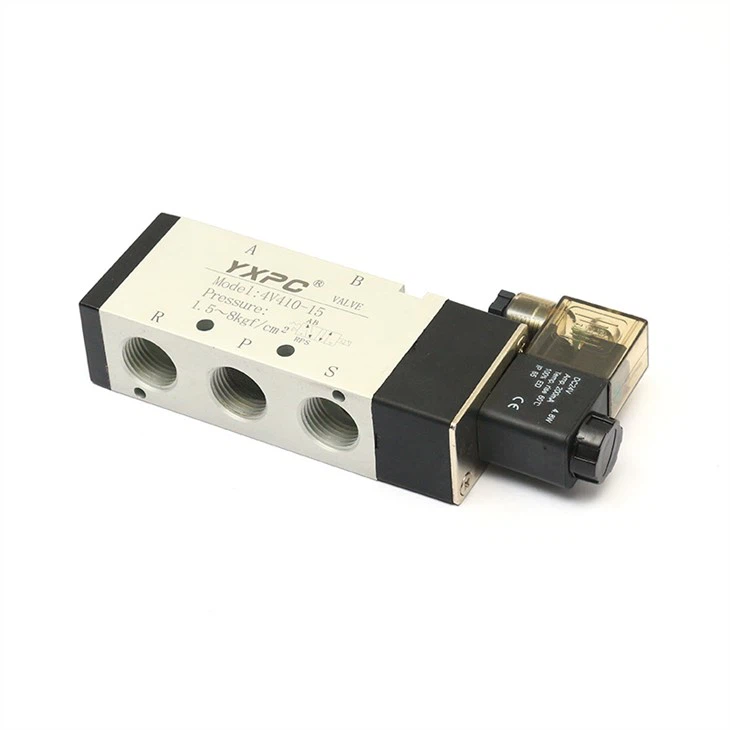

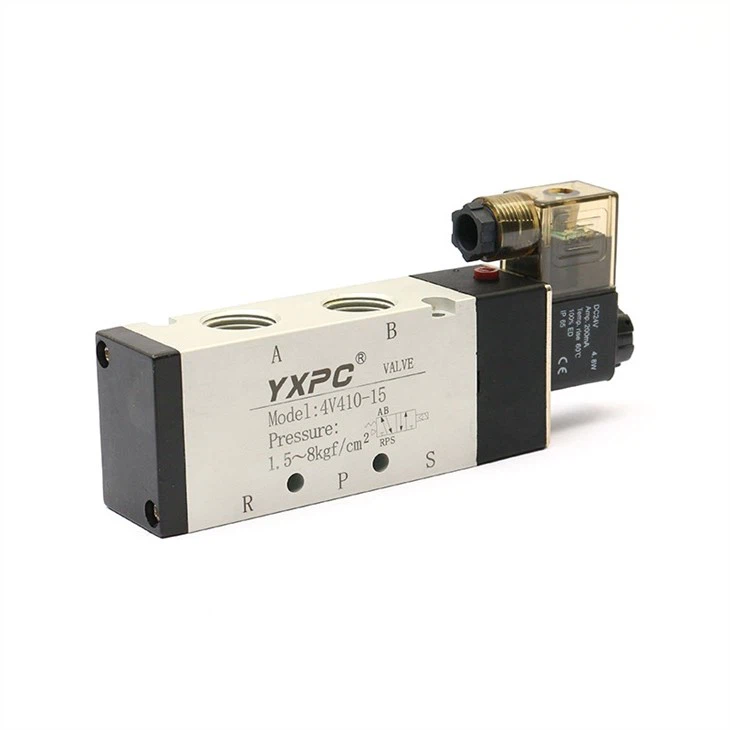

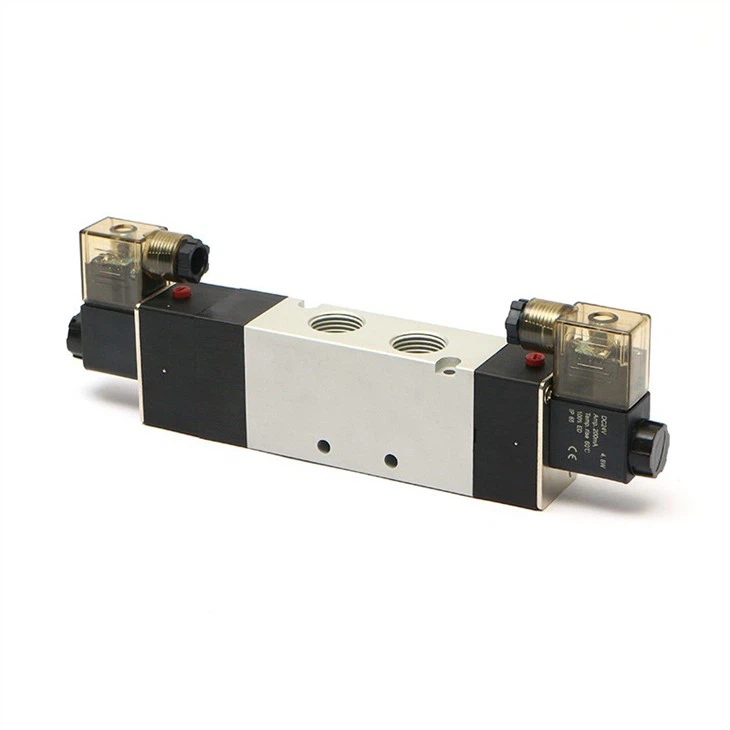

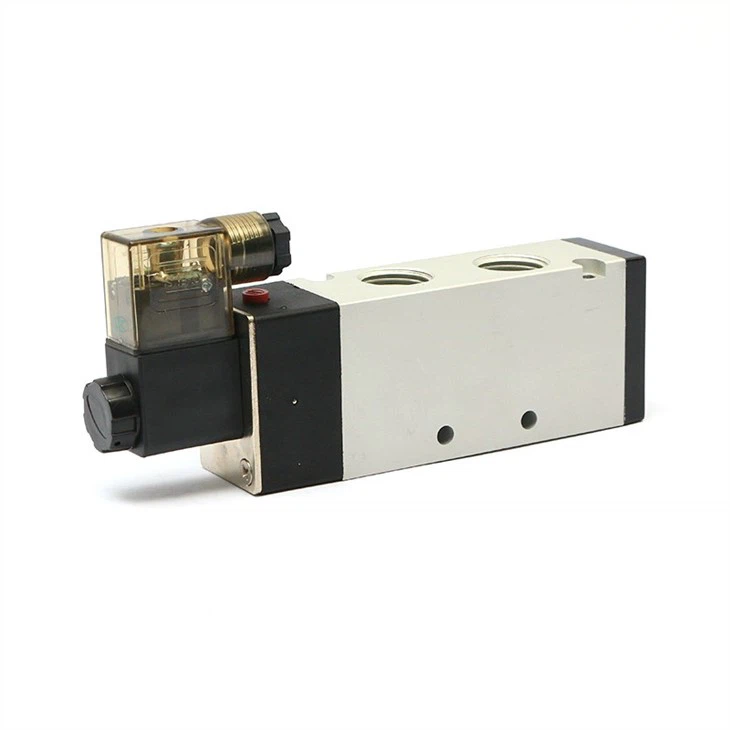

Solenoid Operated Directional Valve

Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading solenoid operated directional valve manufacturers and suppliers in China. If you're going to buy cheap solenoid operated directional valve, welcome to get quotation from our factory. All customized products are with high quality and competitive price.



Features







Product Features

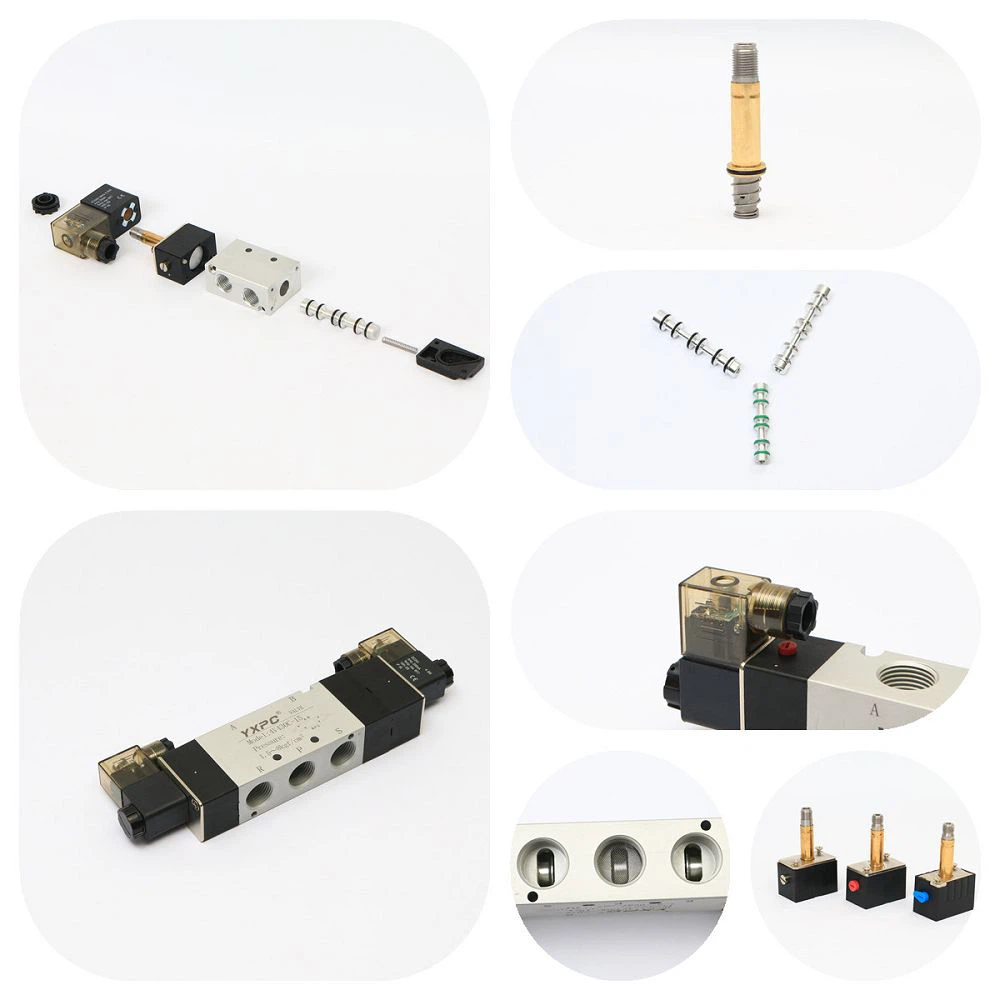

‌Structural Components‌
• High-strength aluminum alloy (A6061-T6) bottom cover with anodized surface treatment
• CNC-machined aluminum alloy piston with wear-resistant coating
• Embedded brass locking nut with anti-loosening design

‌Precision Machining‌
▶ Integral CNC turning for valve lever (±0.01mm tolerance)
▶ Mirror-finish valve body (Ra≤0.8μm)
▶ Special honing process for inner bore (cylindricity ≤0.005mm)

‌Performance Parameters‌
▸ Ultra-fast response: 0.05s actuation time (24V DC version)
▸ Low operating pressure: Starts at 0.15MPa
▸ Extended cycle life: 30 million operations (certified by TÜV)

‌Customization Options‌
✓ Multi-voltage solenoid coils: 12/24/110/220V AC/DC available
✓ NPT threaded connections: 1/8" to 1" sizes customizable
✓ Manual override for installation debugging

‌Premium Accessories‌
• Imported PTFE seals (FDA compliant)
• Pilot valve components with aerospace-grade bearings
• Corrosion-resistant hardware (salt spray test 500h)

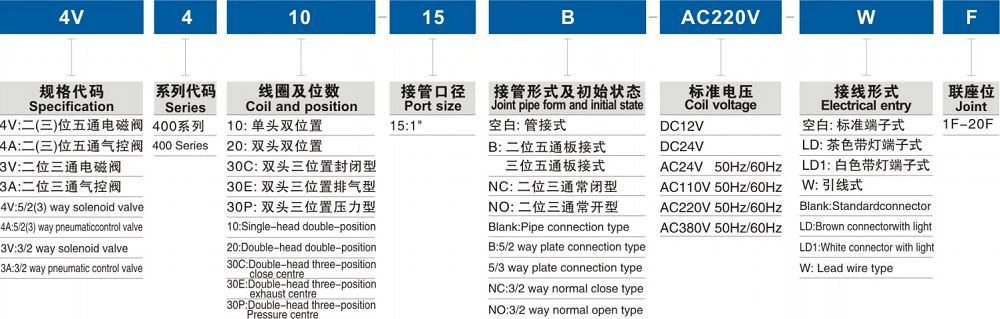

Ordering code





Product Features



4V	4	10	15	A
Model	series	valve type	Port size	Voltage
4V:5/2 way or 5/3 way	4:400 series	10:Single solenoid	15:PT1/2"	A: AC220V
		20:double solenoid		B:DC24V
		30C:Double-head Three-position Close Type		C:AC110V
		30E:Double-head Three-position Exhaust Type		E:AC24V
		30P:Double-head Three-position Pressure Type		F：DC12V





Model	4V410-15	4V420-15	4V430C-15	4V430E-15	4V430P-15
Way and position	5 port 2 position		5 port 3 position
Pipe size	Import=1/2 Export=1/2 Exhaust=1/2
Sectional Area	50mm² (CV=2.79)
Working medium	Clean Air(40 Micron Filtered)
Acting type	Inner guide type
Working pressure	0.15-0.9Mpa
Max.pressure	1.2Mpa
Working temperature	-5-50℃
Voltage range	-15%-10%
Heat Resistant grade	B
Protective class	IP65
Coil type	Din type,Flying leads
Max.Acting frequency	5 cycles per time
Power Consumption:	AC5.5VA DC: 4.8W
Color of body	can be white ,black or according to customer's request .
