High Pressure Solenoid Valve
High pressure solenoid valve 5 way 3/8 PT port DC 24V external pilot terminal entry 300 series.Solenoid Air Valve 4V310-10B
Features
Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading high pressure solenoid valve manufacturers and suppliers in China. If you're going to buy cheap high pressure solenoid valve, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
| YXPC 4V310-10B High-Pressure Solenoid Valve |
The YXPC 4V310-10B high-pressure solenoid valve is a functional replacement for the SMC VFS3000 series.
Primary Application: Pneumatic actuators in AT, GT, and similar systems.
Key Features & Capabilities:
Proven Design: Leveraging 20 years of experience manufacturing plate valves (including the 4V310-08), the internal structure features an excellent design with minimal wear.
Low Operating Pressure: Operates reliably at inlet pressures as low as 0.15 MPa.
High-Pressure Capability: Can be customized for operating pressures ranging from 1.0 to 1.2 MPa.
Wide Temperature Range:
Low-Temperature Option: Customizable for operation down to -40°C, suitable for demanding northern environments. Market-validated.
High-Temperature Option: Customizable for sustained operation at temperatures exceeding 120°C. Ensures non-deforming performance and continuous operation without shutdown in high-heat environments.
Performance: Designed for high flow rates and rapid response, enabling fast actuation of pneumatic drives.
Installation Precautions:
Voltage Selection: Strictly adhere to the specified voltage (DC12V, DC24V, AC220V, AC110V). Ensure the power supply voltage remains within -10% to +15% of the rated voltage for normal operation.
Operating Pressure: Standard operating pressure is typically between 0.15 MPa ~ 0.8 MPa. Specify if higher inlet pressures are required.
System Cleanliness: Thoroughly clean the solenoid valve before installation. Ensure the supplied medium (air/gas) is free of contaminants. Install a filter upstream (before) the valve.
System Redundancy: To ensure continuous system operation during solenoid valve maintenance or failure, install a bypass circuit.
| Parameter |
|
Model NO. |
4V310-10 |
4V320-10 |
4V330C-10 |
4V330E-10 |
4V330P-10 |
4V310-10B |
|
Port size |
G3/8" |
G1/4" |
G3/8" G1/4" |
|||
|
Working mode |
Single acting |
|||||
|
Working Medium |
Air (40M filteration) |
|||||
|
Acting Mode |
Internal inductive type |
|||||
|
Sectional area |
30mm2(Cv=1.68) |
18mm2(Cv=1.00) |
18mm2(Cv=1.00) |
|||
|
working pressure |
1.5~8.0Kgf/cm2(21-114Psi) |
|||||
|
Max pressure |
12Kgf/cm2(170.6Psi) |
|||||
|
Working temperature |
-5~50C |
|||||
|
Working voltage |
DC12V,24V,AC36V,110VAC,220VAC,380VAC |
|||||
|
Voltage range |
-10%~+10% |
|||||
|
Power consumption |
AC5.5VA DC4.8W |
|||||
|
Insulation |
F Class |
|||||
|
Protective class |
IP65 |
|||||
|
Max acting frequency |
five times per second |
|||||
|
Excitation time |
0.05S |
|||||
|
Connection form |
Leading wire or terminal connector type |
|||||

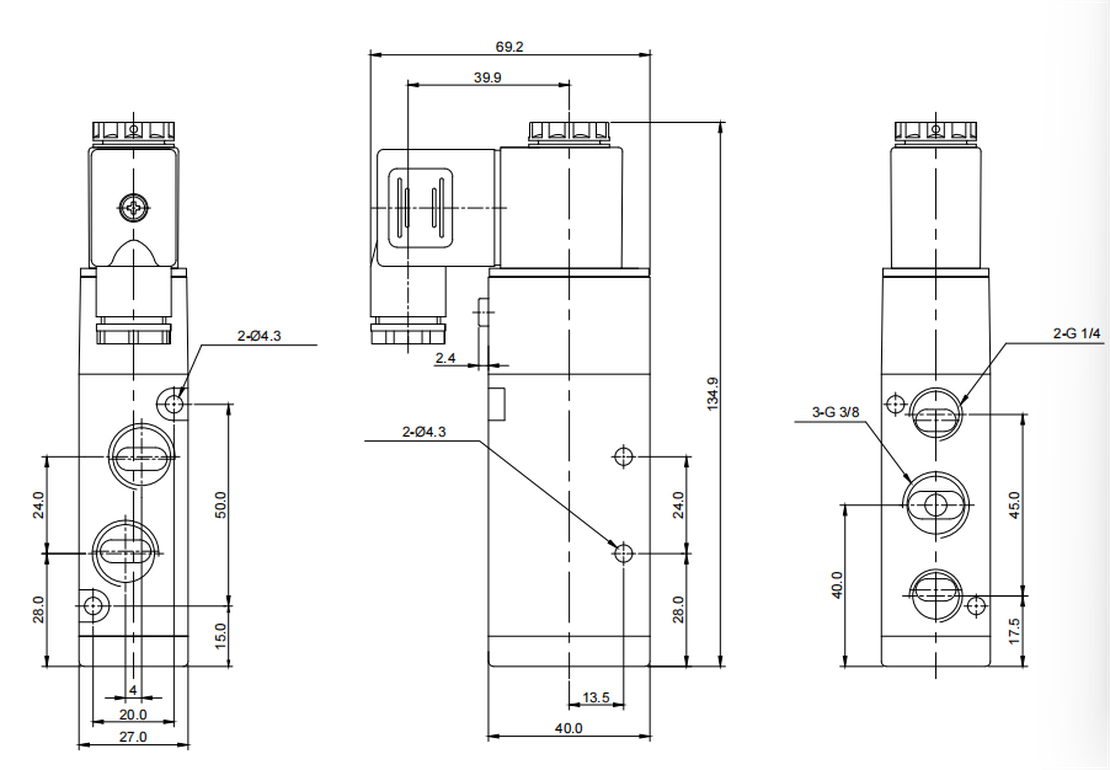

| Overall Dimension |
