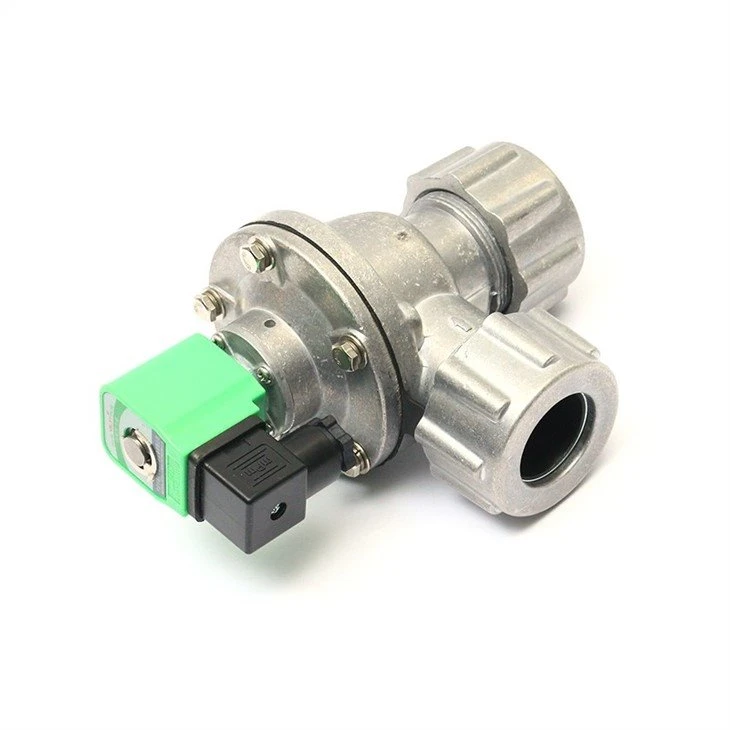

Right Angle Pulse Jet Valve Solenoid Valve
YXD-ZM-20
Right Angle 40mm Diaphragm Solenoid
Pulse Jet Valve Bag house Bag Filter
Features
Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading right angle pulse jet valve solenoid valve manufacturers and suppliers in China. If you're going to buy cheap right angle pulse jet valve solenoid valve, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
| Introduction |
The Right Angle Pulse Jet Valve Solenoid Valve is mainly used in the environmental protection dust removal industry. The electromagnetic pulse valve is the "switch" of the compressed air pulse blown bag type dust removal system. Secondly, the resistance controls the output signal of pulse controller and jets dust cleaning bag by bag to keep the dust within the set range to ensure the handling capacity and dust removal efficiency. Finally, if you are interested in our products, please communicate with us in time.
Feature
The Right Angle Pulse Jet Valve Solenoid Valve is used to control compressed air in dust filtering systems. Secondly, our female threaded connection port has the feature of easy installation. And our efficiency is very high, which can save you a lot of time and effort. Finally, our products are made of high quality materials and are not easy to rust.
| Product Parameter |
Model No. | YXD-ZM-20 | YXD-ZM-25 | YXD-ZM-40S |
Type | Pulse jet valve | ||
Customized support | OEM, ODM | ||
Application | General | ||
Temperature of Media | Medium Temperature | ||
Power | Pneumatic | ||
Working pressure | 0.3~0.8MPa | ||
Ambient Temp | -5 ~ 55℃ | ||
Relative Humidity | <85% | ||
Media | Clean air | ||
Voltage | AC110V AC220V DC24V | ||
Power | DC20W AC25VA | ||
Electric current | 0.46A /0.23A/0.8A ±10% | ||
Type | Right angle thread | ||
Diameter | Diameter 20mm | Diameter 25 mm | Diameter 40mm |
Connection port | G3/4” | G1” | G1-1/2” |
Diaphragm life | Over one million cycles | ||
Diaphragm (NBR/FKM) | Single diaphragm | Double diaphragm | |

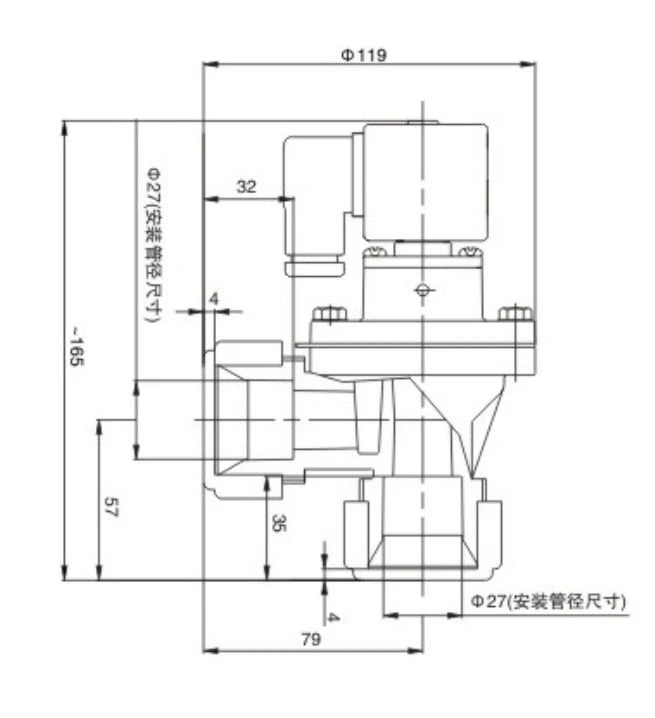

| Overall dimension |
![]() | ![]() |
