Air Compressor Pneumatic Frl Unit
AC4010-04 filter regulator lubricator frl unit
SMC type Air Source Treatment Unit Combination frl pneumatic
Water oil separator frl unit pneumatic With pressure Gauge
Port size G1/2", full cooper filter element
Auto drain available
Frl unit in pneumatic system
Features
Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading air compressor pneumatic frl unit manufacturers and suppliers in China. If you're going to buy cheap air compressor pneumatic frl unit, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
| Introudction |
Manufacturing, food, woodworking, papermaking, and other industries will use compressed air as energy, so air treatment devices are particularly important. The air compressor pneumatic frl unit consists of an air filter (water separator) and a pressure-reducing valve (pressure regulating valve). The main function of the pressure-reducing valve is to stabilize the pressure of the air source, make the air source reach a constant state, and reduce the damage to the valve and actuator caused by sudden changes in air pressure. The main function of the air filter (water separation air filter) is to clean the polluted air source, filter the water and impurities in the compressed air, and prevent the water and impurities from entering the equipment with the gas.
Features

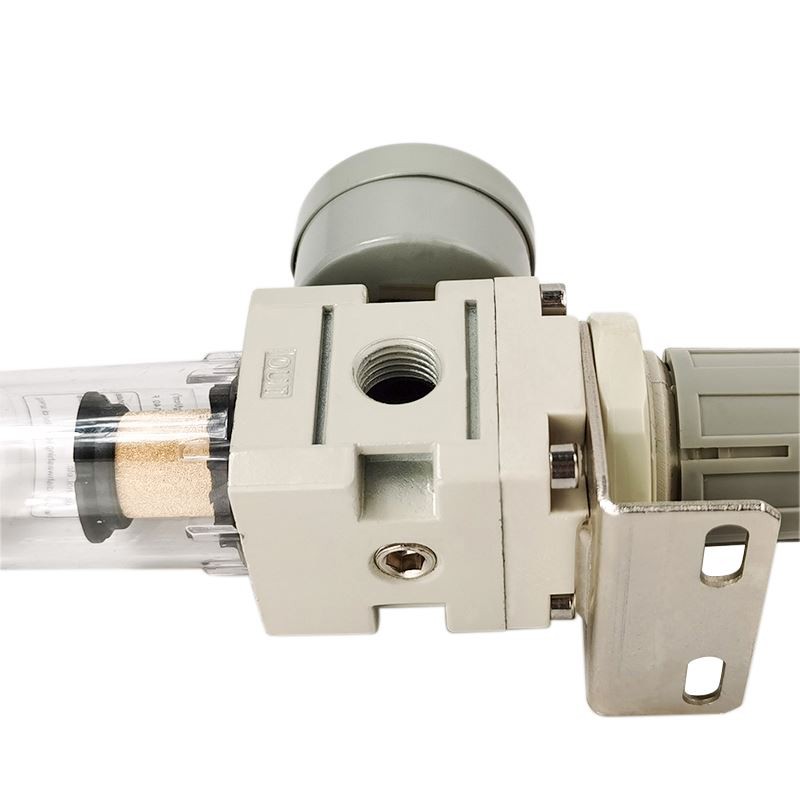

The filter element of the air compressor pneumatic frl unit is made of copper, with high filtering accuracy and easier replacement.
The protective cover not only improves visibility but also improves safety.
The aluminum alloy body is compact and impact resistant, and the plastic spraying treatment makes it more corrosion-resistant.
The pressure regulating and stabilizing self-locking function can make it more stable and prevent abnormal movement or air leakage.
| How to order |
A | C | 4010 | -04 | D |
Series | Function Code | Specification Code | Joint Pipe Bore | Drian Type |
A Series | F.R.L Combination | 2010 | 02:G1/4" | Blank:Differential Drain |
| - | - | 3010 | 03:G3/8" | D:Automatic Drain |
| - | - | 4010 | 04:G1/2" | - |
| - | - | 5010 | 06:G3/4" | - |
| - | - | - | 10:G1" | - |
| Product parameter |
Model | AC2010-02 AC2010-02D | AC3010-03 AC3010-03D | AC4010-04 AC4010-04D | AC5010-06 AC5010-06D | AC5010-10 AC5010-10D |
Port size RC(PT) | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
Pressure gauge port size | 1/8" | 1/4" | |||
Flow rate(L/Min) | 550 | 2000 | 4000 | 5500 | 5500 |
Proof pressure | 1.5Mpa(15.3kgf/cm²) | ||||
Max.operating pressure | 1.0Mpa(15.3kgf/cm²) | ||||
Ambient & fluid temperature | 5~60°C | ||||
Nominal filtration rate | 40µm | ||||
Adjustable Pressure range | 0.05~0.85 | ||||
Pressure gauge | Y40-01 | Y50-02 | |||
| Overall dimension |
| More details |
 |  |
| Precautions |
1) air compressor pneumatic frl unit should be installed on a fixed column and cannot be fixed with ropes.
2) The installation position of the two-piece should be easy to repair and maintain.
3) Add oil to the lubricator and add turbine No. 1 oil (ISOVG32)
4) Connect the inlet and outlet pipes, which can be straight or bent, no need to add a throttle valve at the inlet and outlet
5) The intake pipe is connected to the air filter, and the outlet pipe is connected to the lubricator
6) Adjust the air pressure as required.
