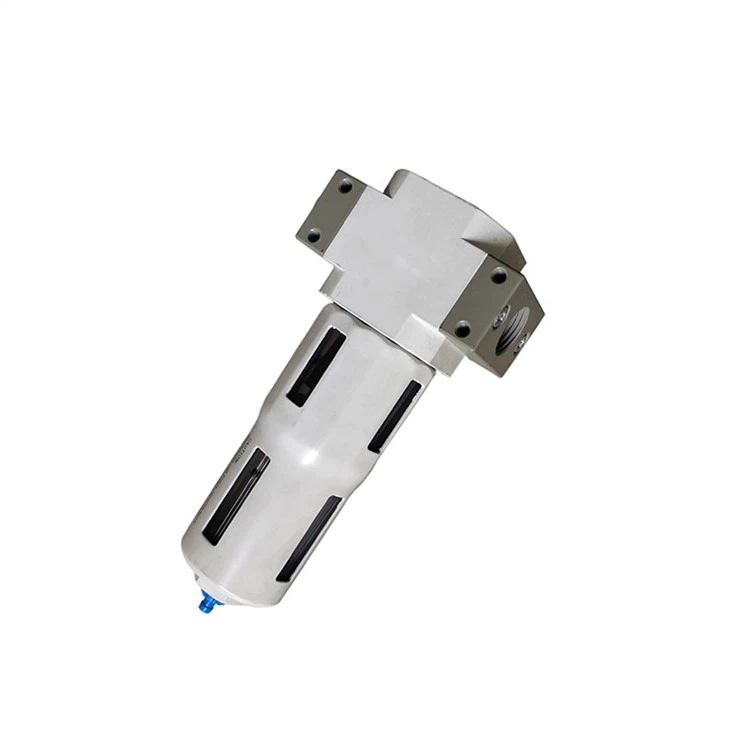

Oil And Water Separator Air Filters

Oil And Water Separator Air Filters

OF series Pneumatic water and oil separator
Port size 1/8”,1/4” 3/8” 1/2”
With pressure gauge 16bar
Cooper filter element
Zinc alloy body , auto drain available

Send Inquiry

Features

Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading oil and water separator air filters manufacturers and suppliers in China. If you're going to buy cheap oil and water separator air filters, welcome to get quotation from our factory. All customized products are with high quality and competitive price.



Introduction


The function of Oil And Water Separator Air Filters is to filter oil, water, and particles in compressed air. It is generally divided into three levels for filtering. The first stage is to filter impurities in the liquid. This process will filter out 95% of impurities. The second stage can generally filter out medium particles and oil in most aerosol forms. The third stage is precision filtration, which can filter the smallest particles and oil. You can choose the standard 40 according to your needs μ M filter element, or 25 μ m、5 μ M filter element.


Features

Oil And Water Separator Air Filters use pure copper filters, so their filtering performance is better than that of traditional filters.

It can separate fluid oil, condensation, and dirt particles in compressed air.

The valve body is made of zinc alloy, which is wear-resistant and corrosion-resistant.

Port sizes include 1/8 ", 1/4", and 3/8 ". Plastic part colors are also available in orange and blue.


How to order


16


Product parameter


Air compressor air filters

MINI

MIDI

MAXI

Manual drain

working pressure 12bar 40um

OF-1/8-MINI

OF-1/4-MINI

OF-3/8-MINI

OF-3/8-MIDI

OF-1/2-MIDI

OF-3/4-MIDI

OF-3/4-MAXI

OF-1-MAXI

working pressure 7bar 40um

OF-1/8-7-MINI

OF-1/4-7-MINI

OF-3/8-7-MINI

OF-3/8-7-MIDI

OF-1/2-7-MIDI

OF-3/4-7-MIDI

OF-3/4-7-MAXI

OF-1-7-MAXI

working pressure 12bar 5um

OF-1/8-5M-MINI

OF-1/4-5M-MINI

OF-3/8-5M-MINI

OF-3/8-5M-MIDI

OF-1/2-5M-MIDI

OF-3/4-5M-MIDI

OF-3/4-5M-MAXI

OF-1-5M-MAXI

Working medium

compressed air

Feature of structure

Filter with water separator+ direct constant lubricator+ diaphragm type regulator (MINI,MIDI)+ Piston regulator( MAXI)

Mounting type

pipe / foot mounting

assembly positioin

veritical

Connectioin

G1/8"

G1/4"

G3/8"

G3/8"

G1/2"

G3/4"

G3/4"

G1"

Standard nominal flow rate

OU...(-A)

700

1000

1200

2000

2600

2600

7000

8000

OU--7-(-A)

800

1300

1500

2500

2800

2800

8500

8700

OU--5M-(-A).

600

850

1050

1700

1800

2100

6500

7200

Mini flow rate

3L/min

6L/min

10L/min

primary pressure

Manual drain

1-16bar

auto drain

1.5-12bar

working pressure

0.5-12bar / 0.5-7bar

grade of filteration

40um /5 um

capacity of fluide

22ml

43ml

80ml

temperature range

0~60 °C

Materials information

Housing:Zinc die-casting;Filter bowl and oil bowl:PC;Metal bowl guard:Aluminium alloy;Sealing:NBR;Adjusting knob:POM

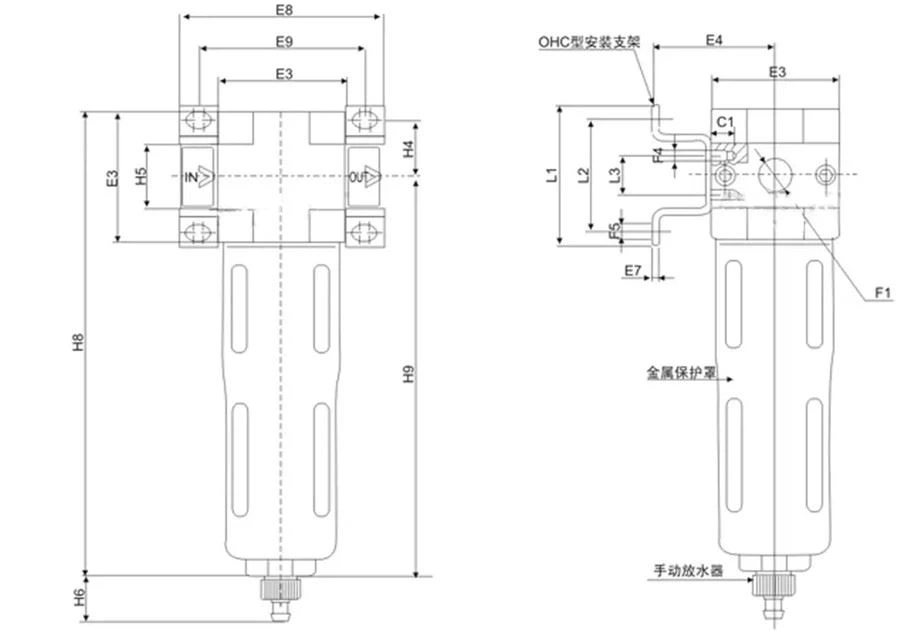

Overall dimension


17


Model

E3

E4

E7

E8

E9

F1

OF...MINI

40

39

2

64

52

M5, G1/8,G1/4,G3/8

OF...MIDI

55

47

3

85

70

G1/4,G3/8,G1/2,G3/4

OF...MAXI

66

53

3

96/116

80/91

G3/4,G1


Model

F4

F5

L1

L2

L3

H4

H5

H6

H8

OF...MINI

M4

4.5

40

35

11

17.5

20

15

144

OF...MIDI

M5

5.5

71

60

22

24.5

3

15

179

OF...MAXI

M5

5.5

71

60

22

24.5

32/40

15

203

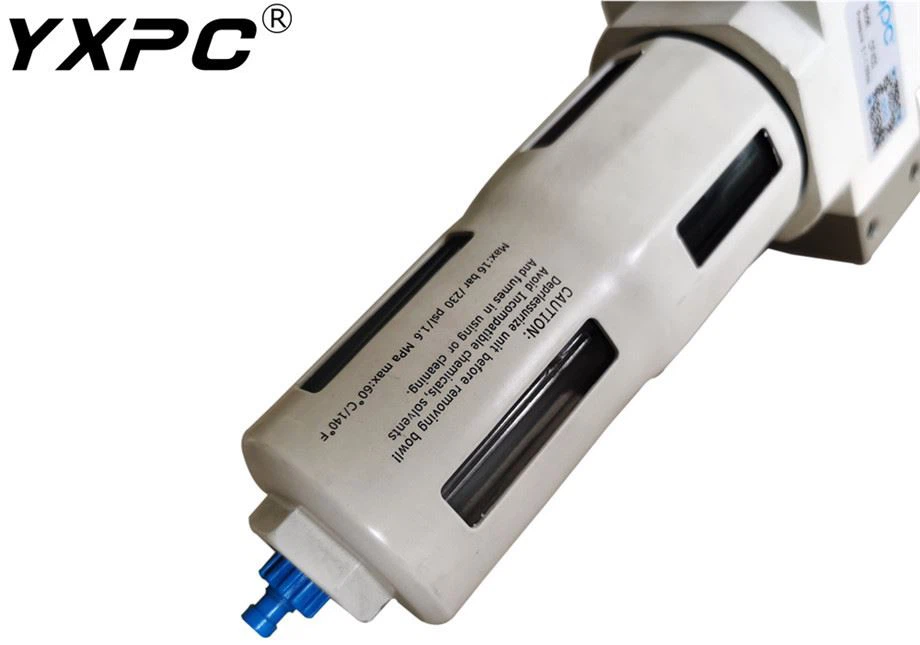

Product show


2122


Package and shipment


1) YXPC Brand, Neutral or Customer's requires label

2) YXPC carton or same as the Customer's requires, export standard carton

3) All cartons should be packed into the pallets more carefully.

4) All of the productions are inspected carefully one by one by QC before delivery.

5) We usually use cartons to pack the goods together. When the product is a machine over 50kg, we use wooden or pallet packing.
