Pneumatic Solenoid Valve Coil 220vac
video
Pneumatic Solenoid Valve Coil 220vac

Pneumatic Solenoid Valve Coil 220vac

solenoid valve coil
spare parts for solenoid valve
pneumatic solenoid valve coil 220vac for 5 way air valve
Solenoid coil 24vdc for 3 way pneumatic reversing valve
CE certificated approved IP65 IP68 grade
AC220V AC110V DC12V DC24V
special voltage and power can be customized

Features

Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading pneumatic solenoid valve coil 220vac manufacturers and suppliers in China. If you're going to buy cheap pneumatic solenoid valve coil 220vac, welcome to get quotation from our factory. All customized products are with high quality and competitive price.




Introduction

The pneumatic solenoid valve coil 220vac use low carbon, high permeability steel as the magnetic conductivity material. Secondly, the insulation level of our solenoid coils is at the highest level. What's more, our products also have special series of explosion-proof solenoid coils for explosion-proof environments such as coal mines and oil fields, and waterproof solenoid coils for underwater applications. Finally, our products are inexpensive and good quality, which are loved by our customers.


Feature

The pneumatic solenoid valve coil 220vac is used to direct or stop the flow of compressed air to their equipment. For example, they can be used to drive cylinders, larger industrial valves or pneumatic tools. Secondly, our products are made of high quality materials, which are resistant to aging and corrosion. Finally, our products have the feature of no noise in the process of use.


Product parameter


Product name

solenoid valve coil 220vac

Normal Voltage

AC220V AC110V DC24V DC12V

Normal Power

AC

3VA 5VA

DC

2.5W 2.8W

Other voltage and power can be customized

Insulation Class

F,H

Connection Type

DIN43650C

Diameter

8 mm

Height

22.8 mm

Code

YX578

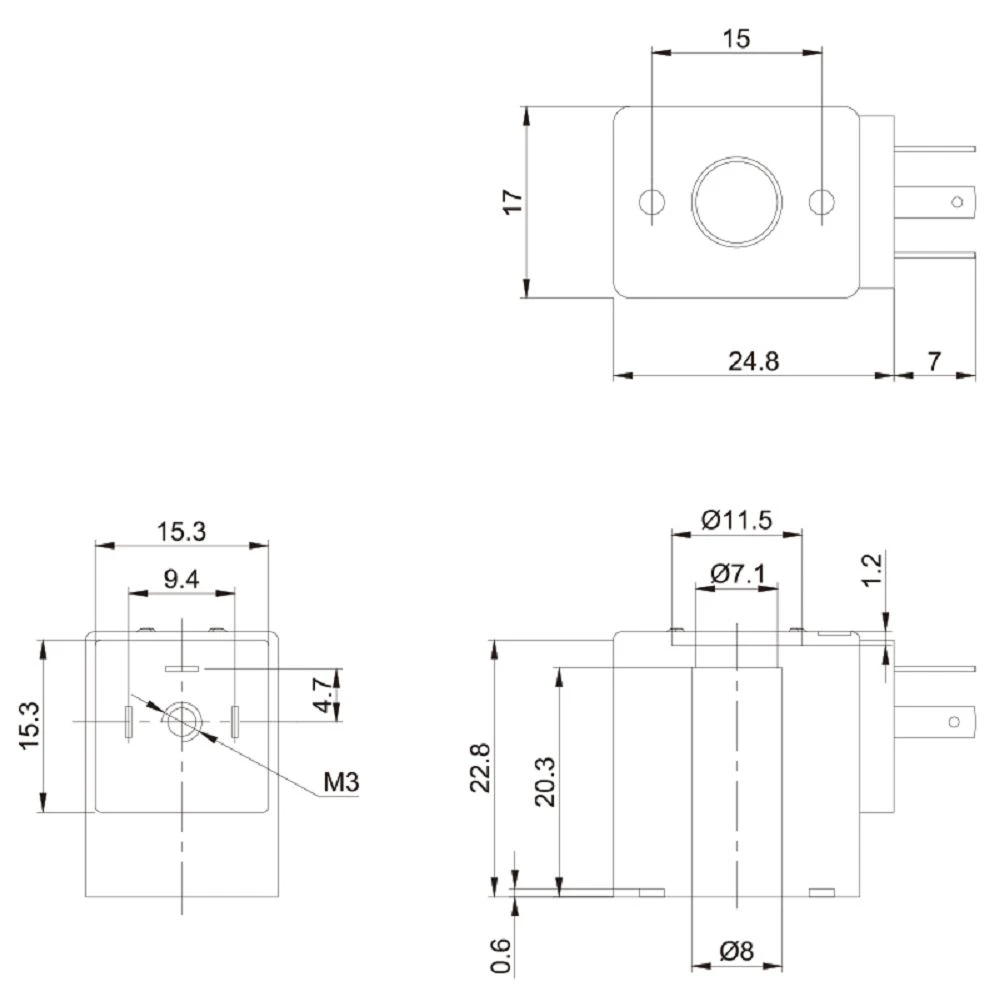

Overall dimension


size(001)
