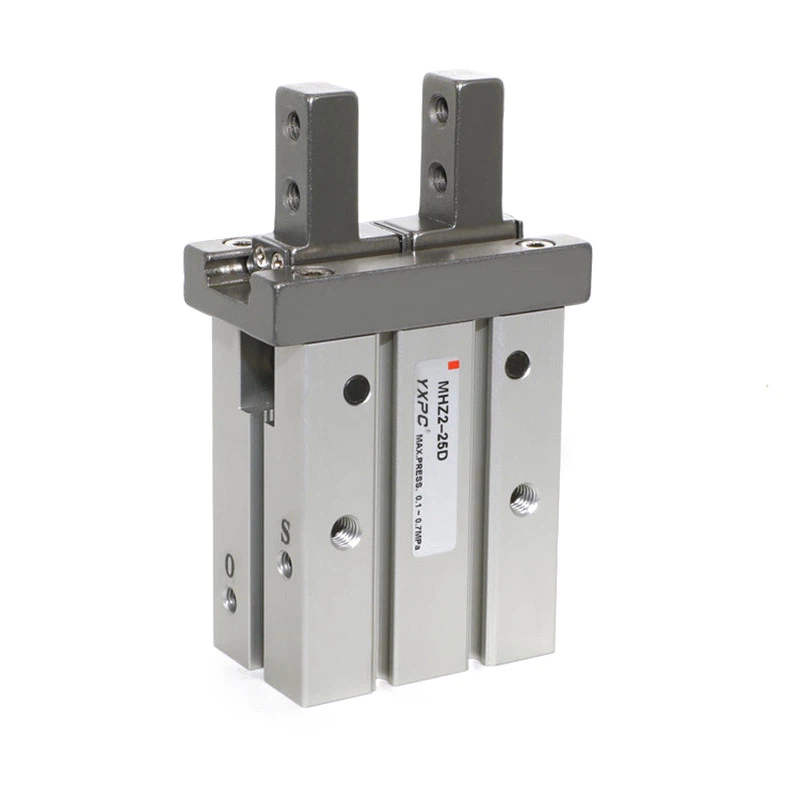

Parallel Air Gripper
MHZ2 pneumatic gripper cylinder
Air Grips finger gripper clamp pneumatic cylinder
Bore diameter 6mm 10mm 16mm 20mm 25mm 32mm 40mm
With auto switch
Features
Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading parallel air gripper manufacturers and suppliers in China. If you're going to buy cheap parallel air gripper, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
| Features |
Parallel type air gripper MHZ Series standard type Φ6,Φ10,Φ16,Φ20,Φ25,Φ32,Φ40
Parallel Type Air Grippers ・The linear guide improves rigidity and accuracy. ・Dustproof and drip proof construction ・Dust cover material is selectable. • RELIABLE CLAMPING AND DURABLE • SIMPLE INSTALLATION AND WIDE APPLICATION
Integral linear guide used for high rigidity and high precision.
1) Adopt japanese imported seal ring to prevent air leakage from the left and right chambers of the cylinder, durable and wear-resistant ,air tightness improved.
2) Adopt germany imported grease ,excellent anti-wear characteristics, good high load-bearing capacity, keep smooth operation under high speed.
3) Piston rod is made of 304 stainless steel ,high hardness.
4) High precision steel ball,linearized integrated ball type guide design. 5)Surface adopts hard oxidation sandblasting process, corrosion resistant, more impact resist.

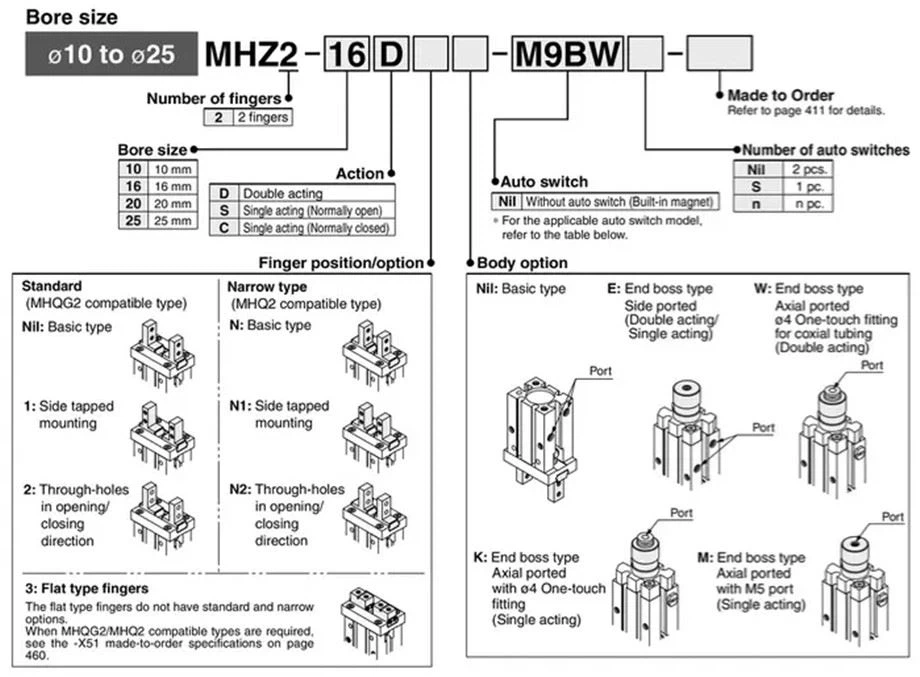

| How to order |
| Product Parameter |
|
Bore size (mm) |
6D |
10D |
16D |
20D |
25D |
|
Action |
Double acting ,Single acting |
||||
|
working medium |
filtered air |
||||
|
operating pressure |
0.1~0.7Mpa |
||||
|
Port size |
M5x0.8 |
||||
|
Repeatability |
±0.01mm |
||||
|
Max.operating frequency |
180 c.p.m. |
||||
|
Auto switch (Option) |
Solid state auto switch (3-wire, 2-wire |
||||
| Overall Dimension |
| Product Show |
 |
 |
