Pneumatic Cylinder Double Acting

Ningbo Yuxin Pneumatic Valve Co., Ltd. is one of the leading pneumatic cylinder double acting manufacturers and suppliers in China. If you're going to buy cheap pneumatic cylinder double acting, welcome to get quotation from our factory. All customized products are with high quality and competitive price.



Features



1. Small size, light

2. Strong resistance to lateral load

3. High torque resistance

4. High precision without rotation

5. Guide rod bearings can be selected for sliding bearings or ball bearings

6. Convenient installation

7. Two face take over position to choose.

8. Bore 32mm 40mm 50mm 63mm 80mm 100mm 125mm 200mm

9. Fixed type : Basic;LB;FA;FB;CA;CB;SDB;TC



1) This series of cylinder conforms to: ISO6431 standard

2) There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.

3) We can offer different kinds of mounting style according to ISO 6431 standard, like Foot mounting, Front flange mounting, Rear-flange mounting,and so on.

4) Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT etc.

5) Needn't lubricate on piston rod by oil

6) The piston adopts two Y-shaped unidirectional sealing structures with auxiliary function, long life and low starting pressure.

7) Cylinder diameter 32-100 is m-shaped cylinder without tie rod, cylinder diameter 125-320 is round cylinder tie rod type.

8) Adjustable end piston buffering at both ends.

9) SI: Double acting type. SID: Double rod type SIJ: Adjustable stroke type

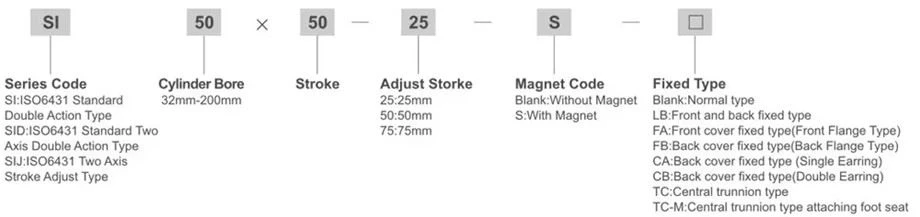

How to order





Product parameter



bore(mm)	32	40	50	63	80	100	125	160	200
Acting Type	Double Acting
Working Medium	Double Acting
Working Medium	Clear Air
Mounting type	SI Series	Basic type:FA FB CA CB LB TC TC-M1 TC-M2
	SID Series	Basic type:FA FB CA TC TC-M1 TC-M2
	SIJ Series	Basic type:FA LB TC TC-M1 TC-M2
Guaranteed pressure	1.5Mpa
Working pressure range	0.1-1Mpa
Working temperature	5~70℃
Speed Range	50-800mm/s
Cushion type	adjustable cushion
Cushion stroke	27mm		30 mm		36mm		40mm	50mm
Port Size	G1/8	G1/4		G3/8		G1/2		G3/4



Bore size (mm)	Standard stroke(mm)	Max. stroke (mm)	permissible stroke (mm)
32	25 50 75 100 125 150 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
63	25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
125	25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
160	25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
